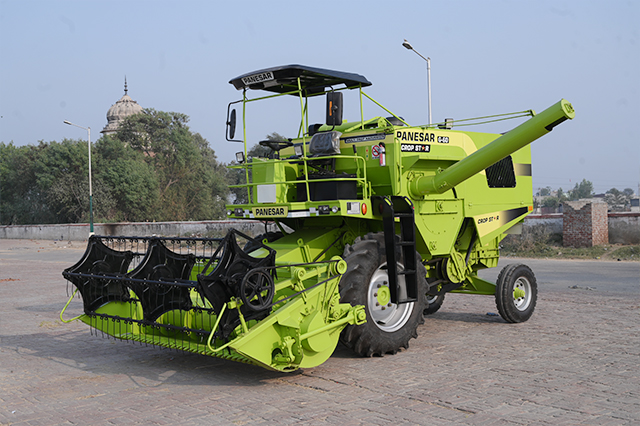

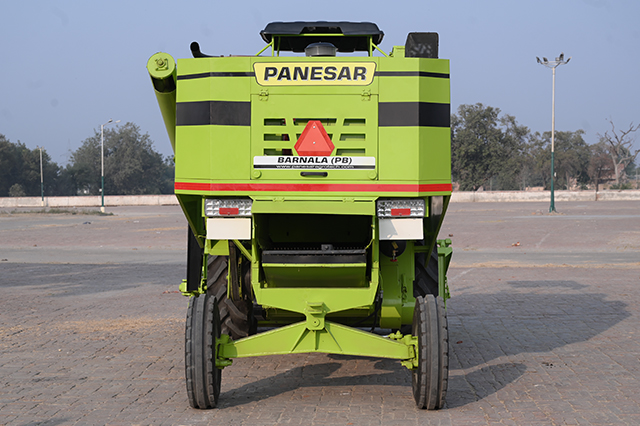

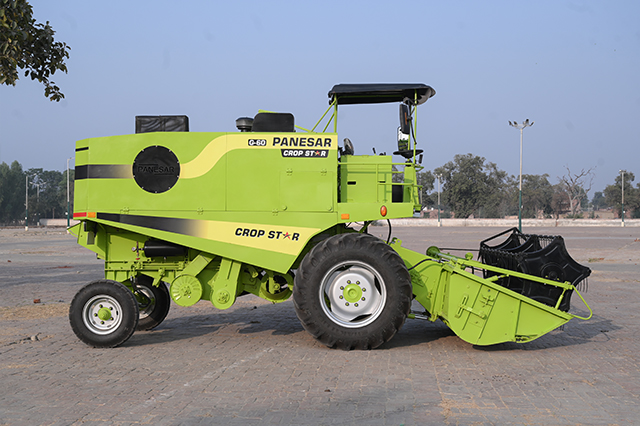

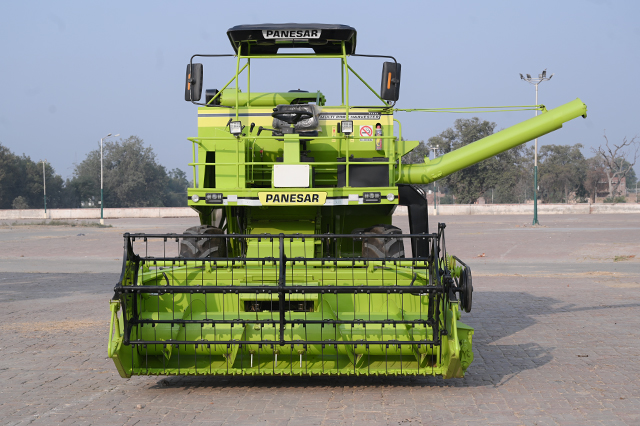

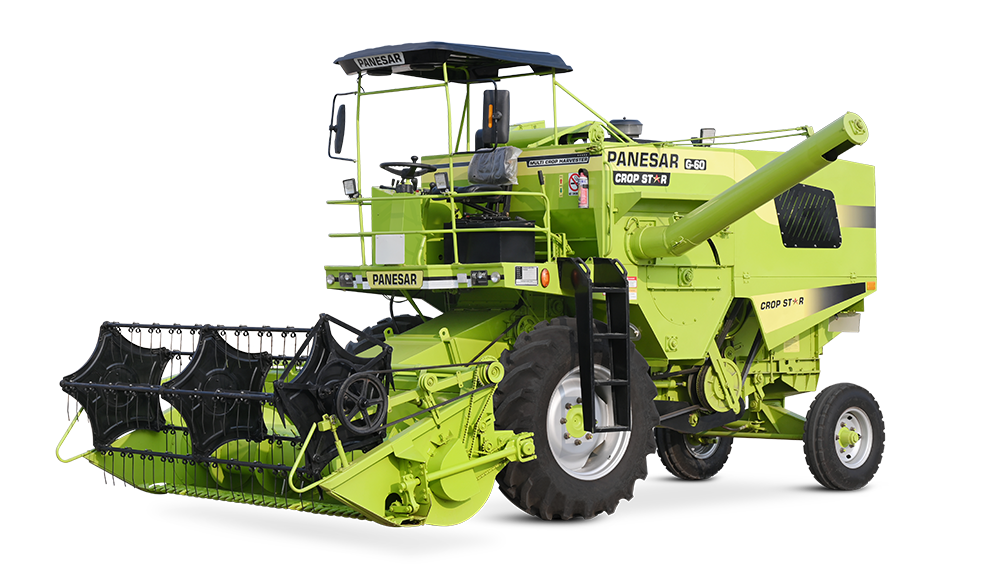

PANESAR Introducing India’s First Compact Self-propelled combine Harvester With Double Drum Threshing Technique (TAF). A Multicrop Harvester with Modern Technology.It has the capacity of 1 – 1.5 acre (approx.) harvesting a field per hour. Small in size and Bestin Fields.
PANESAR Introducing India’s First Compact Self-propelled combine Harvester With Double Drum Threshing Technique (TAF). A Multicrop Harvester with Modern Technology.It has the capacity of 1 – 1.5 acre (approx.) harvesting a field per hour. Small in size and Bestin Fields.
| A.Engine | Ashok Leyland | |
|---|---|---|
| Model | G-60 Crop Star | |
| Power | 76 HP at 2200 RPM | |
| No. of Cylinder | Four | |
| Air Cleaner | Dry | |
| Cooling System | Water Cooled | |
| B.Cleasing Sieves | ||
| Upper Sieves | 1216x1575(55"x28")+1216x635(20"x28") | |
| Lower Sieves | 1216x1575(55"x28") | |
| Fuel Tank(ltr) | 110 ltr | |
| C.Ground Clearance9(mm) | ||
| G Clearance9(mm) | 465 | |
| Weight9(kgs)_ | 4450 (kgs) | |
| Grain Tank Capacity | 900-1200 kgs | |
| D.Battery | ||
| No. of Battery | 1 | |
| Capcity & Rating of Each | 12V,120AH | |
| Grain Tank Capacity | 900-1200 kgs | |
| E.TRANSMISSION / DRIVE | ||
| No. of Gears | 3 Forward, 1 Reverse | |
| Gear Speeds (km/hr) | Low to High | |
| F.CUTTER BAR MECHANISM | ||
| for Wheat, Paddy & Others | ||
| Width | 2600 mm | |
| Cutting Height (mm) | 55-1250 mm | |
| No. of blades | 37 | |
| No. of Guards | 36(18pcs) | |
| Stroke (mm) | 75 | |
| Reel (rpm) | 26-61 | |
| Dia (mm) | 1064 | |
| Feeder Housing | Chain Type Feed Rack | |
| G. THRESHING MECHANISM | W-----P-----M | |
| Rasp Bar---Peg Toth---Rasp Bar | ||
| Width (mm) | 1410 | |
| Diameter of Thresher Drum (mm) | 530 | |
| Speed (rpm) | 750-1020 | |
| Speed Adjustment | By Means of Mechanical Aviator | |
| H.MAIN DIMENSION | ||
| In Working: | In Transport | |
| Length (mm) | 6096 | 8365 |
| Width (mm) | 2845 | 2390 |
| Height (mm) | 3125 | 3125 |
